Valves

Valves

The range is wide – from simple manually operated valves to advanced valve terminals with I/O and bus connections, as well as ready-built valve systems to the customer's requirements. We have a large selection of special valves, which enables us to solve almost any pneumatic valve task.

Valve manifolds are built to order

Contact a sales consultant for further information, or call 7013 2300. You are also welcome to write to us at sales@hncgroup.dk.

Emerson
Aventics

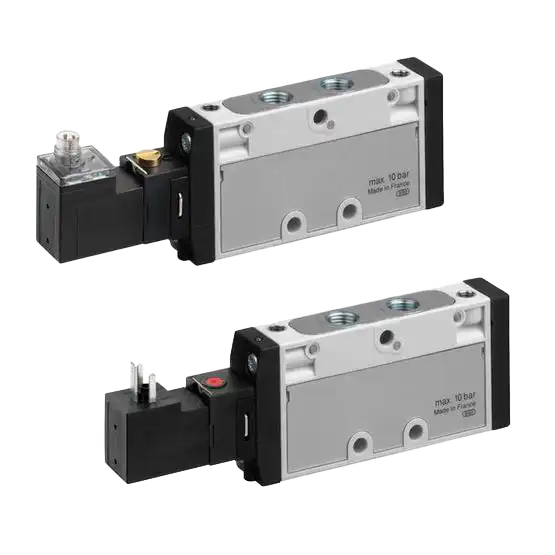

Emerson Aventics TC08

Series TC08/TC15

The TC08/TC15 series comprises a wide range of spool valves with housings made of high-performance polymers with robust and flexible metal inserts. It is designed for flow rates from 800 to 1500 l/min. These valves are easy to assemble, making them ideal for applications that require the highest efficiency in confined spaces.

Datasheet

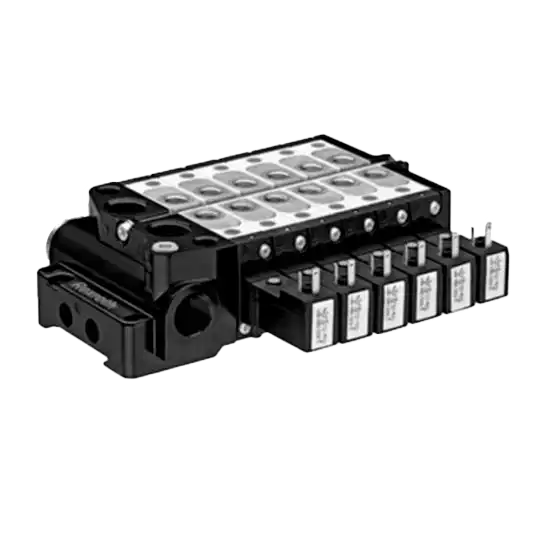

Emerson Aventics TC08 valve system

Series TC08

The TC08 valve system is the perfect choice for applications that require lightweight valves with a high flow rate in a small space. With valves operated either pneumatically or electrically, the valve system can be expanded modularly to up to 12 valves. Valves can be replaced without dismantling the valve manifold.

Features:

  • Qn = 600 l/min .. 800 l/min
  • 2×3/2, 5/2, 5/3 spool valves with polyamide housing
  • Connection G1/8″, 1/8″-27 NPTF
  • Working pressure min./max. -0,9/10 bar
  • Voltage 12 V DC, 24 V DC, 24 V AC, 110 V AC, 230 V AC
  • Electrical connection ISO form C, M8 3-pin; M8 4-pin
Catalog

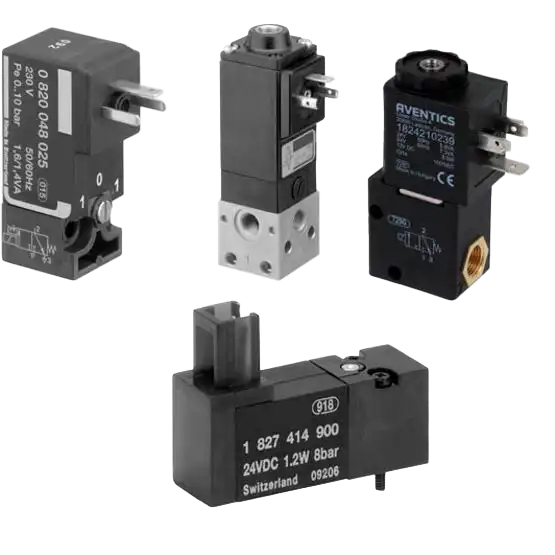

Emerson Aventics DO/DP

System DO/DP

Series DO/DP offers a simple, reliable and robust solution for all classic pilot control functions with direct electrical operation.

Datasheet

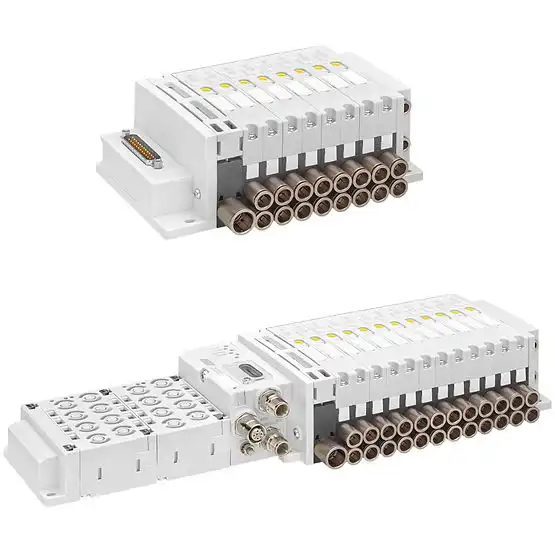

Emerson Aventics AV05 valve system

Series AV05 valve system

The AVENTICS series AV03/AV05 provides a reliable basis for both compact handling systems and complex automation solutions.

In the field of machine safety, series AV03/AV05 offers intelligent solutions that significantly reduce your effort in creating a safe design. With the integration of the fieldbus and the I/O modules in series AES, all requirements for distributed control are also met.

Series AV03/AV05 is easy to configure, easy to use and easy to expand, as well as future-proof.

Features:

  • Modular concept
  • Intelligent solutions for machine safety requirements
  • Suitable for compact handling systems and complex automation solutions
  • High connectivity through multipole or fieldbus connection
  • Integration of a wide range of I/O modules
  • Low weight
  • Low energy consumption
  • Covers the requirements of global automation technology, even under UL specifications and in ATEX areas
  • Series AV03/AV05-BP allows mounting in cabinets
  • OPC UA integration allows easy access to data and analytics without changing or touching the PLC
  • The integrated Digital Twin improves your productivity and efficiency
Catalog

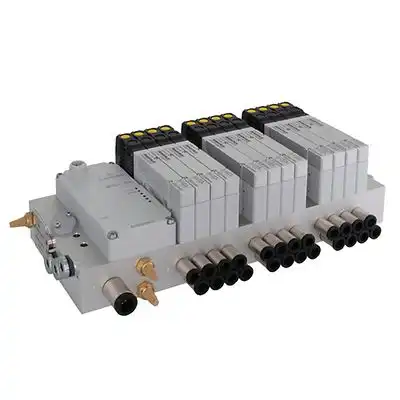

Emerson Aventics XV03 valve system

Series XV03 valve system

The AVENTICS XV03 Compact series provides a reliable basis for both compact handling systems and complex automation solutions.

It comprises a wide range of valve functions and accessories as well as the necessary electrical connection for all requirements in factory automation and other industries. The associated XVES Connectivity module provides connection options ranging from simple direct control via D-SUB or terminal strips to a number of fieldbus protocols.

Features:

  • Optimised flow for its size
  • Broad connectivity through terminal strip, multipole or fieldbus connection
  • Multiple pneumatic connection directions such as side, bottom and top
  • Low energy consumption
  • Wide range of accessories such as shut-off, supply modules, speed modules and regulators
  • Global availability and universal threads to support regional requirements
  • Robust aluminium base plate and ready for cabinet mounting
Catalog
